Fill in the Tracks – Market & 17th St. Crosswalks

July 15, 2016 — An immediate action that would make several pedestrian crossings and a pedestrian plaza safer for bicycles and accessible to the mobility challenged at this intersection between Harvey Milk Plaza and Jane Warner Plaza. This proposal is to fill in the cracks in the two (2) sets of MUNI LRV tracks from the Eastern edge of the crosswalk in Jane Warner Plaza all the way to the Western edge of the westernmost crosswalk in that humongous intersection.

Both sets of tracks are completely sealed flat into the pavement West of the westernmost pedestrian crossing for at least a hundred yards. So there is no question of MUNI needing these particular tracks. What I am suggesting is that they be filled in in the crosswalks to remedy an absurd oversight. Tracks such as these trap bicycles, wheelchair front wheels, small wheeled mobility assistance devices, baby strollers, and are generally considered to be an impediment to access.

Filling just these very specific and short (approx 100 foot) stretches of open grooved rail would be a big step forward for bike safety, pedestrian safety and disability access on this critical and dangerous corner.

This suggestion is proposed at a time when Jane Warner Plaza is about to be resurfaced. What a great time to make it ADA accessible. I think, legally speaking, they are supposed to make these ADA upgrades at the time they do new construction. Here’s an excellent article from Hoodline on July 20, 2016 explaining about the $150,000 dollar grant to fix up the Plaza and how it will (and won’t) be spent.

The following photographs offer an overview followed by a close-up tour of the grooves from the Castro Street F-line stop wheelchair ramp and boarding island crosswalk all the way across Castro Street to the sealed up tracks that go for a long distance before entering an old tunnel. We then cross Market Street and follow the second set of tracks from the tunnel sealed tight till they open the gap upon entering the crosswalk. We follow them back to Jane Warner Plaza where we ponder the huge steel X tracks that sprawl across the walkway thinking of how nice a single curved rail would be instead.

The overview:

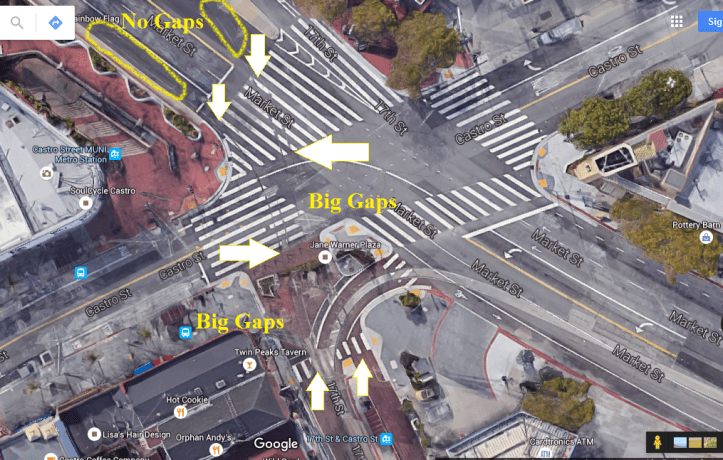

Market Castro & 17th Streets

Yellow circles are sealed in track, arrows indicate the areas we want sealed in.

Close up tour of the rails

We start with the F-Market streetcar directly behind us on the tracks facing West. Note the right hand turn. That track is all we need here. The straightaway heading due West should be paved in tight. This immediately simplifies the crossing.

vlcsnap-2016-07-15-20h25m25s485

vlcsnap-2016-07-15-20h27m54s025
We only need the track that curves toward the right here.
vlcsnap-2016-07-15-20h29m05s923

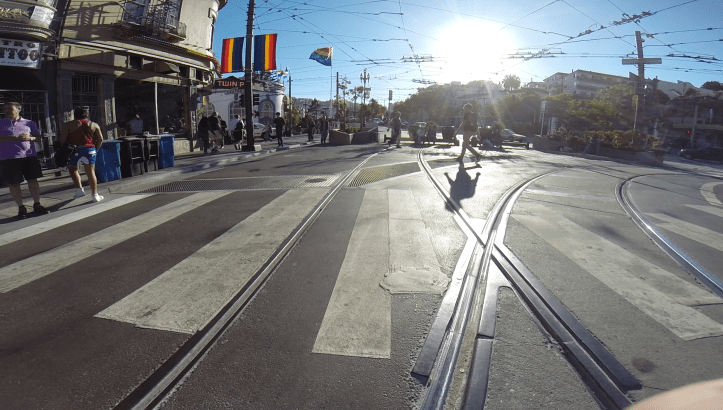

Fill the straightaway in from here on…
vlcsnap-2016-07-15-20h29m45s170
Fill in both these flanges flat to the plaza floor.
vlcsnap-2016-07-15-20h30m00s845
It’s a plaza, don’t cut it in half. Let wheels roll as they need throughout this area.
vlcsnap-2016-07-15-20h30m10s168
Take the step, go from train yard to open accessible plaza space.
vlcsnap-2016-07-15-20h31m00s490
These flanges should be entirely filled flat to the surface.

This pedestrian walkway could use some snazzy paint along with some crack filling… Onward to the West…

vlcsnap-2016-07-15-20h31m38s038

vlcsnap-2016-07-15-20h34m20s366
This is a pedestrian crosswalk, not a train yard. Make it flat for wheelchairs.
vlcsnap-2016-07-15-20h34m40s569
Note the right hand track is sealed in completely. No trains here.
vlcsnap-2016-07-15-20h34m55s967
A wheelchair and bike trap right in the middle of the cross walk.
vlcsnap-2016-07-15-20h35m06s761

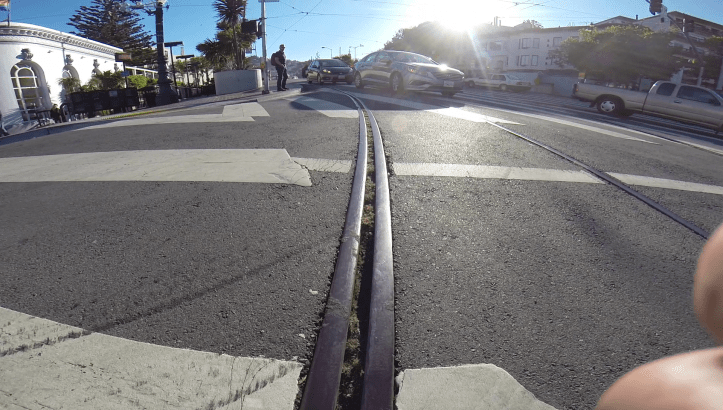

One side sealed, the other wide open. Why?

vlcsnap-2016-07-15-20h35m20s214

vlcsnap-2016-07-15-20h35m59s862

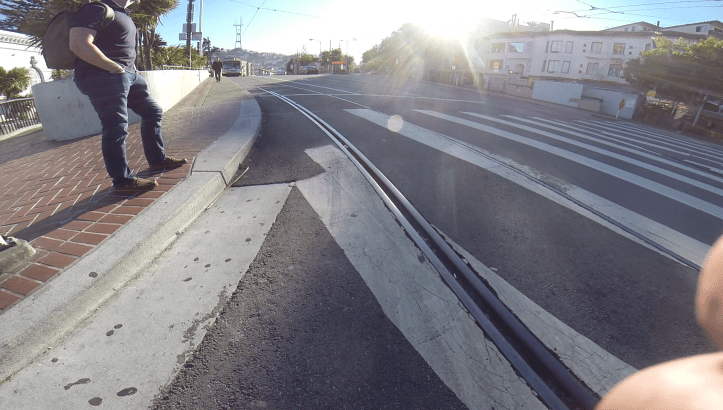

Note the ramp to the walkway with the rut blocking the path to the North.

vlcsnap-2016-07-15-20h36m16s235

vlcsnap-2016-07-15-20h36m27s796
Imagine getting caught in the crack and run over while trying to get free.
vlcsnap-2016-07-15-20h36m42s857
Or imagine the whole crosswalk smooth like this…
vlcsnap-2016-07-15-20h37m39s227

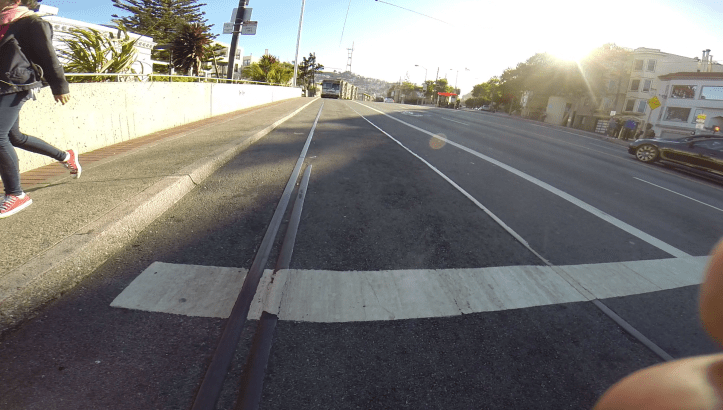

Finally, at the West edge of the walkway, filled in flat as glass.
vlcsnap-2016-07-15-20h37m54s189
Filled in for over a hundred yards, flat like water.

so

vlcsnap-2016-07-15-20h38m20s352

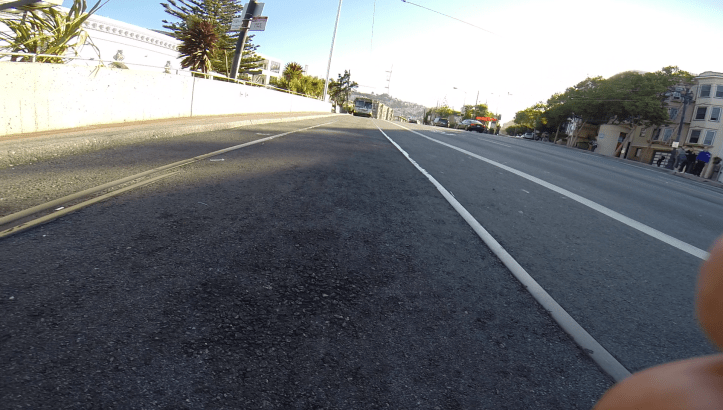

There is an urban myth that these tracks are emergency tunnel exits. They’re not!

vlcsnap-2016-07-15-20h38m31s915

vlcsnap-2016-07-15-20h22m31s002

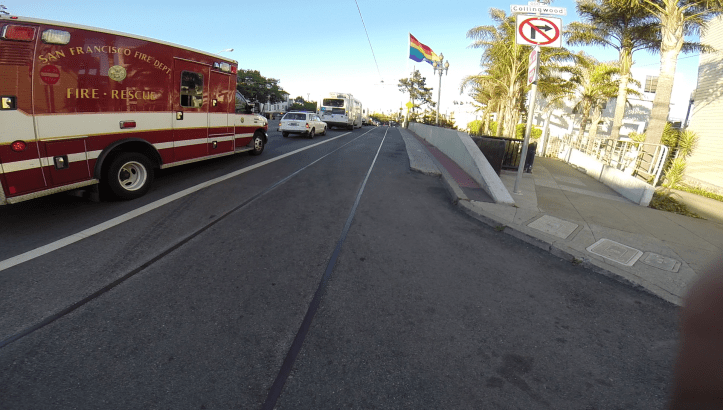

Sealed tight to Collingwood & Market Streets just past Harvey Milk Plaza.
vlcsnap-2016-07-15-20h24m48s764
Here is the Tunnel to Eureka Station, AKA the Ghost Station.



At this point we cross Market Street and head back along the Westbound track, emerging from a tunnel exactly like this one on the North side of Market Street. Like this one, that track is sealed tight as a drum, flat as a pancake from the tunnel gates right down to the crosswalk. Then it too opens up to terrorize wheels big and small. Strange…

vlcsnap-2016-07-15-20h39m07s872
Facing East on Market Street. Rails sealed tight.

vlcsnap-2016-07-15-20h39m19s748

vlcsnap-2016-07-15-20h39m34s595
Still sealed nice and tight, even the double rail section.

vlcsnap-2016-07-15-20h39m47s389

vlcsnap-2016-07-15-20h40m02s060

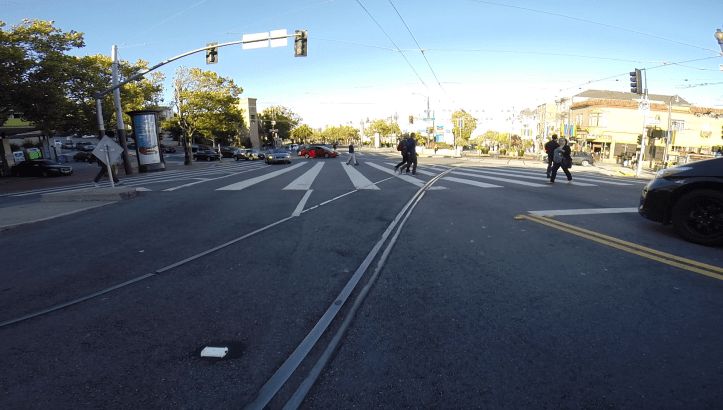

Still holding tight as we head for the crosswalk.
vlcsnap-2016-07-15-20h40m15s757
Looking quite good as we enter crosswalk from the West.
vlcsnap-2016-07-15-20h40m33s017
Step over the gap! Opens up wide to catch the bike lane from uphill, an SF treat from hell!!
vlcsnap-2016-07-15-20h40m43s821

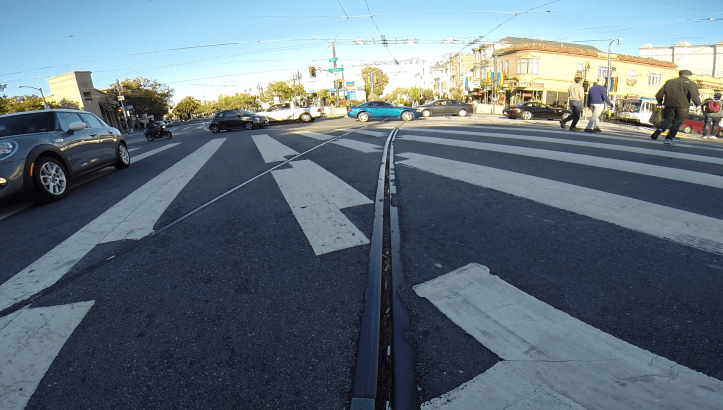

This crack has thrown bicyclists for decades, including me in 1988.
vlcsnap-2016-07-15-20h41m02s555
It’s even got it’s own little garden. This crack deserves a Facebook page.
vlcsnap-2016-07-15-20h41m12s278
Countless San Franciscans have kissed this pavement coming off Twin Peaks.

vlcsnap-2016-07-15-20h41m35s834

vlcsnap-2016-07-15-20h41m49s180
Another crosswalk garden.
vlcsnap-2016-07-15-20h42m00s097

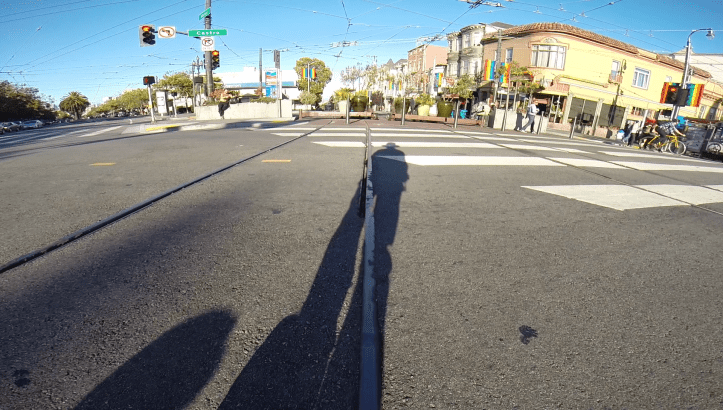

The tracks are only open in the crosswalks. Sealed tight for the cars.

vlcsnap-2016-07-15-20h42m13s154

vlcsnap-2016-07-15-20h42m31s159

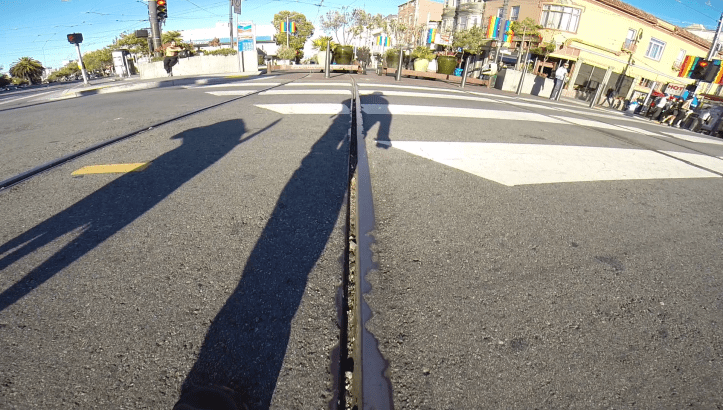

Open for business as we approach the big crosswalk to 17th Street.
vlcsnap-2016-07-15-20h42m43s407
Two rails open wide head to 17th Street through the big crosswalk.
vlcsnap-2016-07-15-20h43m08s698
Two more rails impeding the pedestrian walkway.

vlcsnap-2016-07-15-20h43m19s494

vlcsnap-2016-07-15-20h43m37s660

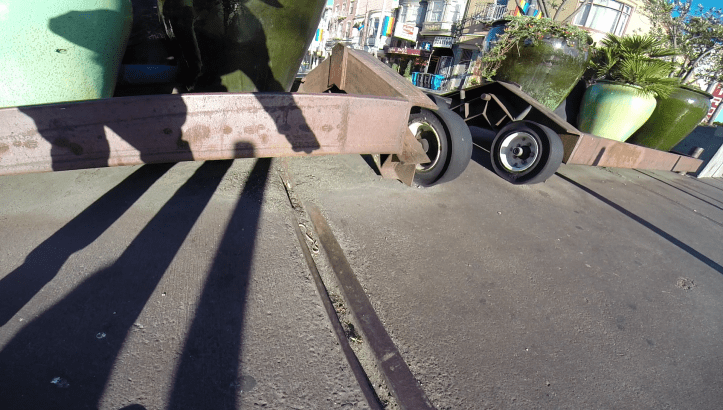

Duck under the rolling flower pots, which we love.
vlcsnap-2016-07-15-20h43m56s888
We enter beautiful Jane Warner Plaza heading East on 17th Street.
vlcsnap-2016-07-15-20h44m13s800
These are not useful tracks, they are a barrier to access and should be filled at this point.
vlcsnap-2016-07-15-20h44m41s140
Imagine this with just one track, the straight one headed East gone.
vlcsnap-2016-07-15-20h45m08s443
This diamond is ridiculous. This should be a simple curve with no intersecting tracks.

vlcsnap-2016-07-15-20h45m22s660

vlcsnap-2016-07-15-20h45m33s801

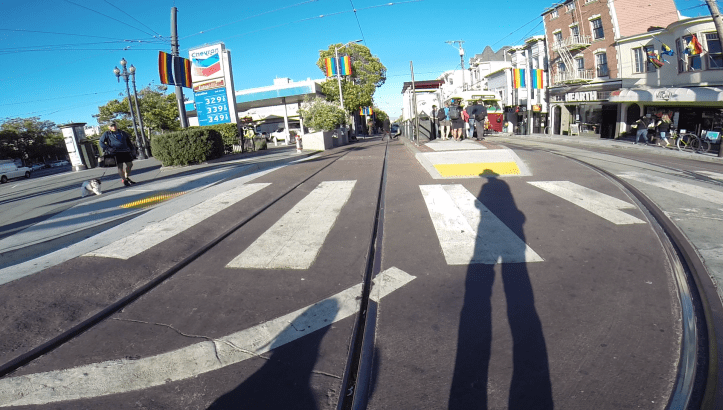

The two rails on the left should be filled back to the far edge of the crosswalk.
vlcsnap-2016-07-15-20h45m58s894

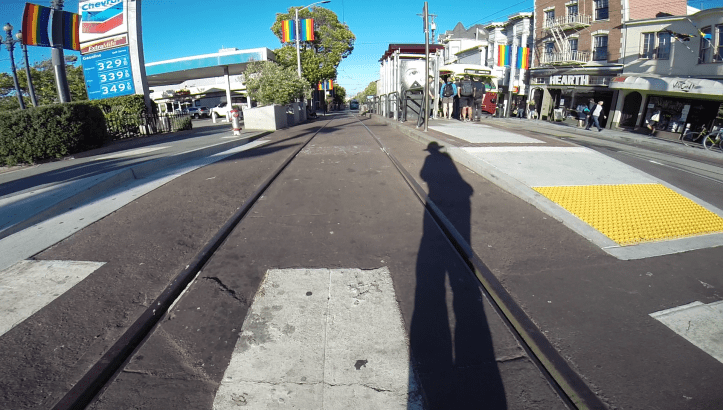

This is the border. From this edge on East MUNI keeps this track open.
vlcsnap-2016-07-15-20h46m43s024
My transportation consultant indicating the border line with his paw.
vlcsnap-2016-07-15-20h46m53s935

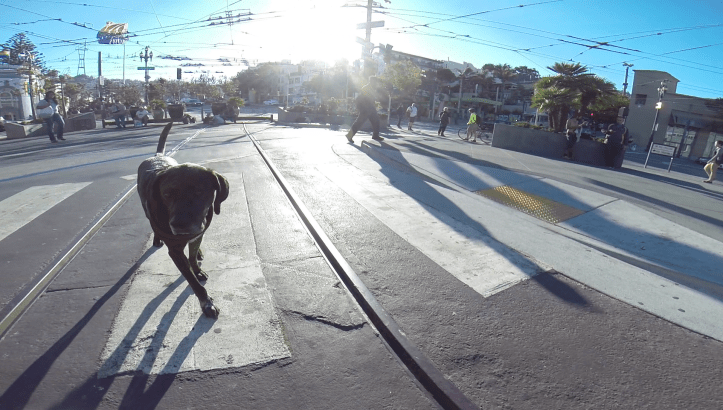

Tracks behind K-9 colleague get sealed shut. This clears the crosswalk from the North.
vlcsnap-2016-07-15-20h47m39s650
Two more rails that can go. Turn that X into one curved rail.
vlcsnap-2016-07-15-20h47m57s986

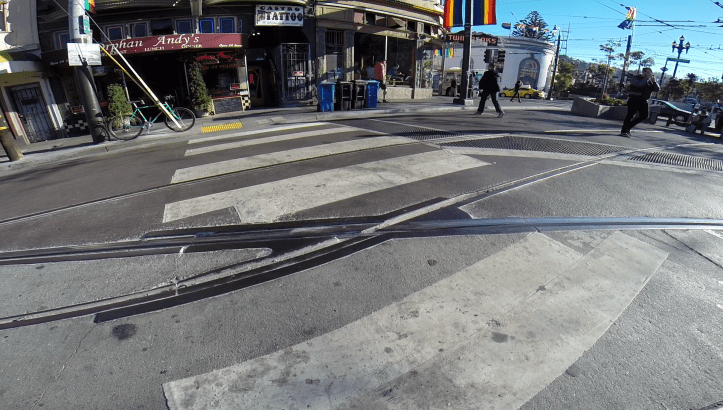

Removing these two rails and simplifying the X into a single curved rail would clean up the approach to the wheelchair boarding platform from the South.
vlcsnap-2016-07-15-20h48m46s449

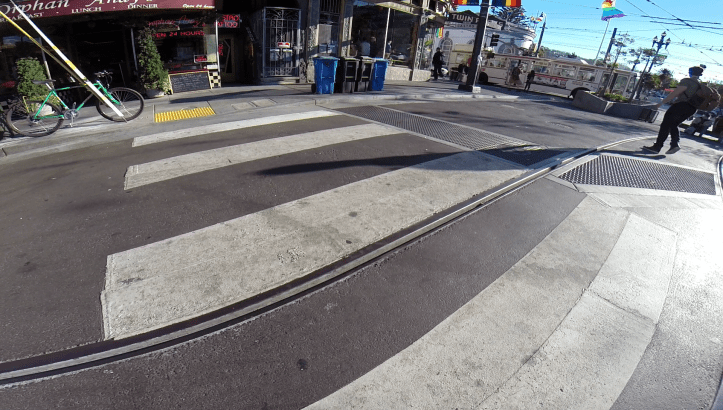

Seal this rail in to the left edge of the crosswalk.
vlcsnap-2016-07-15-20h49m36s192

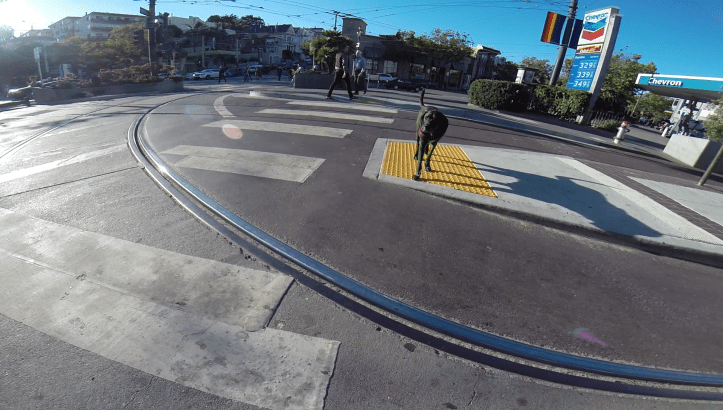

Our transportation expert awaits on the boarding island at Castro F-Market stop.
vlcsnap-2016-07-15-20h51m06s039
And that’s the walking tour, thanks for coming along.

And if you happen to be interested the situation just a block or two down the street does need some attention. We are seeing a lot of serious injuries on track/pavement that SF MTA swears is good as gold. But we measured a five inch rut on these same tracks and MTA is ignoring us when we ask them to fix it. They keep saying their track inspector says its fine. Look at that picture of the woman being placed on the backboard at 17th and Prosper and tell me that pavement is fine! I say their track inspector is blind.
