Asphalt Rainbows in the Castro

John Entwistle, Jr. reporting from Castro Street in San Francisco, California – September 24, 2016.

vlcsnap-2016-09-23-23h05m22s003
Brand new rainbow flag pedestrian crossing zones at Castro and 18th Streets.

The entire intersection of 18th Street and Castro Street was  reconstructed  last week. The job was done by Ghilotti Brothers Construction Company out of San Rafael and a group called Asphalt Impressions from Sacramento.

The rainbow flag itself is a homegrown symbol of the gay community first sewn and visually conceived by Gilbert Baker here in the Castro almost 45 years ago for one of the very first gay pride marches. It has been the flag of the Castro and all gay/lesbian/transgender people ever since. In recent years our local merchants’ group has worked with Gilbert to keep the flag at Harvey Milk Plaza in tip top shape.

The crew’s attention to safety, courtesy and quality was a delight to observe from the beginning all the way until that very last cone was removed. They were friendly, reaching out to and escorting pedestrians carefully through the areas under construction. Hazardous conditions? Try working with dangerous equipment in a construction zone with heavy machinery rolling around you and motor vehicles cutting through your job site.

There were two goals behind this project. First, the crosswalks had been damaged by a movie crew earlier in the year and repairing them required a complete re-installation. Secondly, The City was unhappy with the drainage characteristics of the intersection as a whole.

Apparently water was forming a shallow pond in the center of the intersection just enough to be a safety issue. They wanted to build that area up a bit higher. So they combined goals and scrapped the intersection clean too two inches below grade and just built the whole thing again from scratch.vlcsnap-2016-09-23-15h19m51s524

vlcsnap-2016-09-23-15h22m03s449

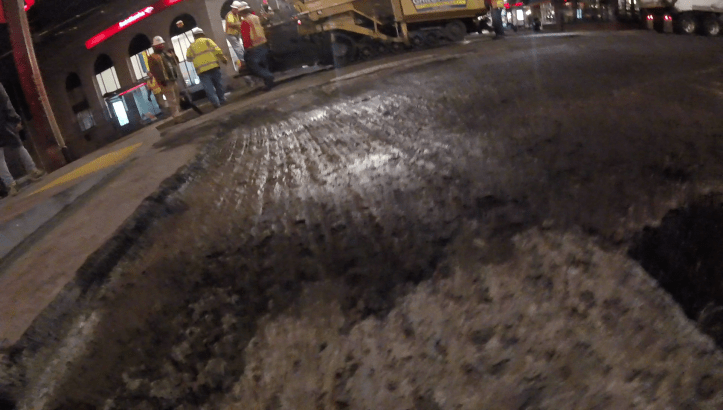

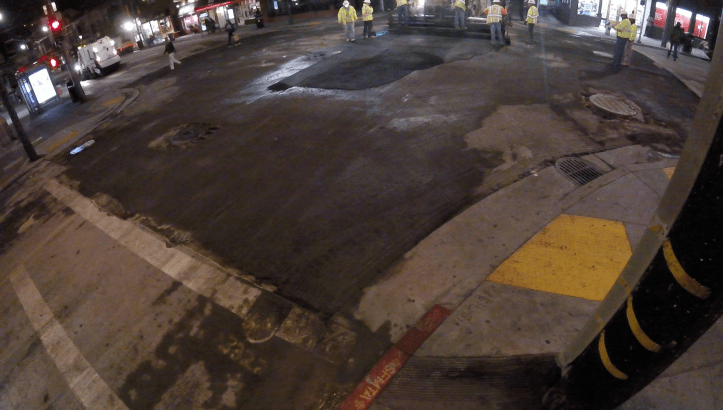

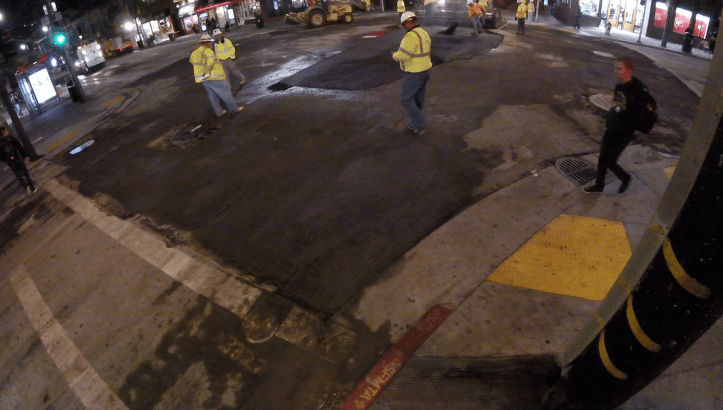

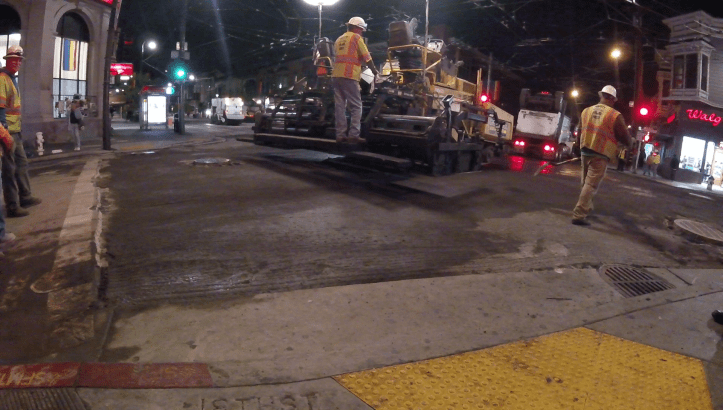

Intersection scrapped clean too two inches below grade. Right down to the concrete base.

This gave me a chance to see what goes into maintaining the streets of San Francisco. This one job took six days and involved an armada of heavy equipment and at least eleven highly skilled workers on site at any given moment. Our little city has over 900 miles of streets that need this treatment every ten years so I thought it is something that we should learn a little about. In that spirit I am going to take this photo essay pretty far in terms of detail.

vlcsnap-2016-09-23-15h25m59s023
The beginning is crucial. We establish levels and height and start at the center. That’s the first truck full of asphalt backing up to the spreading mechanism.
vlcsnap-2016-09-23-15h31m50s766
Hosing down the rollers. That’s the boss watching every detail from the right hand side.

vlcsnap-2016-09-23-15h33m36s044vlcsnap-2016-09-23-15h36m39s072

vlcsnap-2016-09-23-15h37m22s608

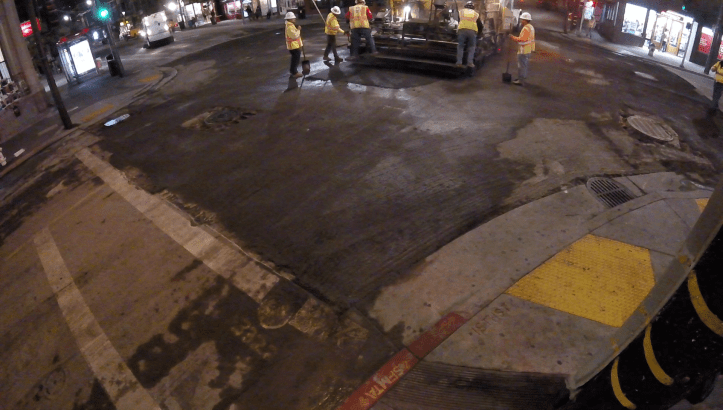

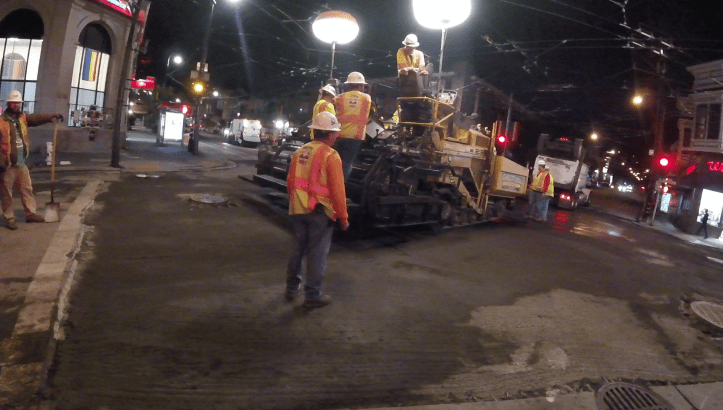

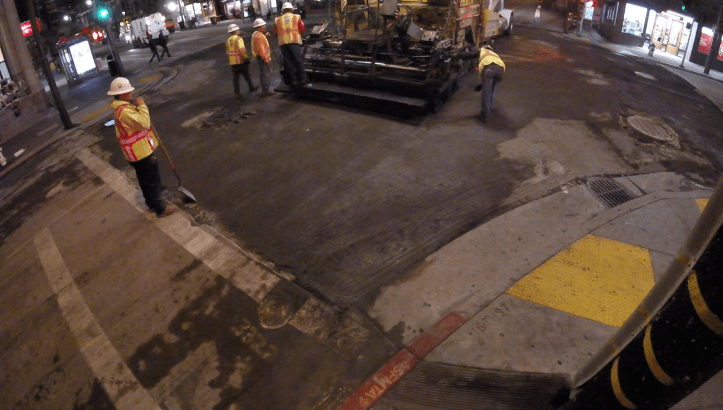

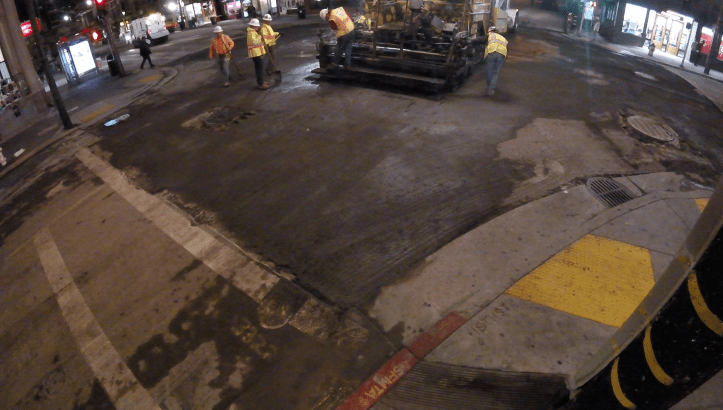

As the first asphalt feeds through the spreader all eyes are focused. This is a hot product on delivery and needs to be processed as it cools. Timing is critical.



Asphalt is a mixture of rock, sand and a binding agent. What makes it malleable is heat. So the asphalt is delivered steaming hot and cools within moments of installation. These workers know exactly how to guide this process into a coherent smooth as glass roadway surface. They pay close attention to the edges and thicknesses and they make sure to do this right away while the material is still hot enough to work with. vlcsnap-2016-09-23-15h37m59s176vlcsnap-2016-09-23-15h38m11s667vlcsnap-2016-09-23-15h41m32s257vlcsnap-2016-09-23-15h42m12s679vlcsnap-2016-09-23-15h44m55s342

vlcsnap-2016-09-23-15h45m58s652

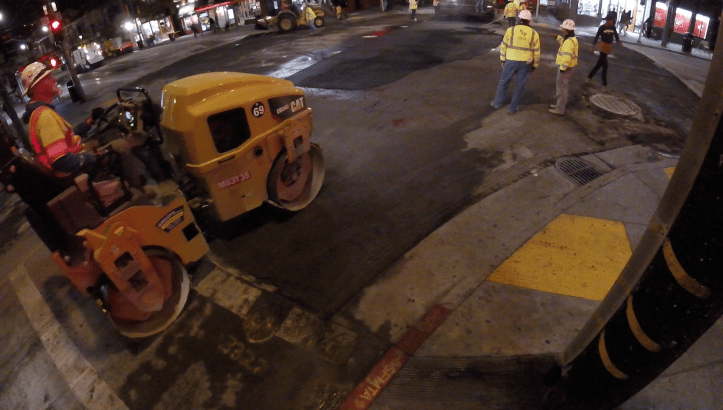

This man looks like he jumped out of a Coit Tower mural. He could of been one of those guys picking tomatoes. But tonight he’s a surgeon with a steamroller.
vlcsnap-2016-09-23-15h51m35s760
Those  guys on the far right are the City representatives overseeing everything.

vlcsnap-2016-09-23-15h53m23s689

vlcsnap-2016-09-23-15h53m40s803

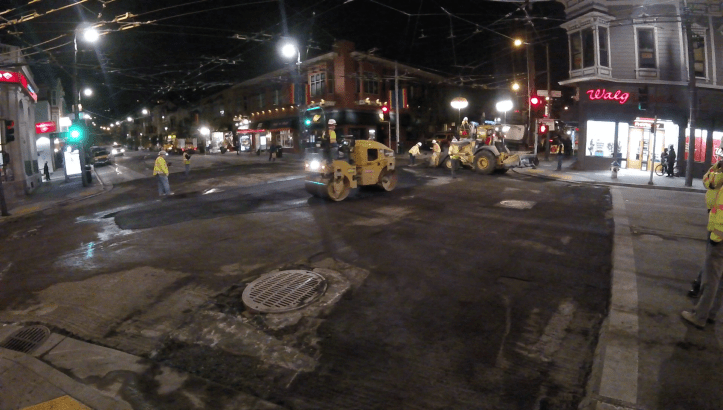

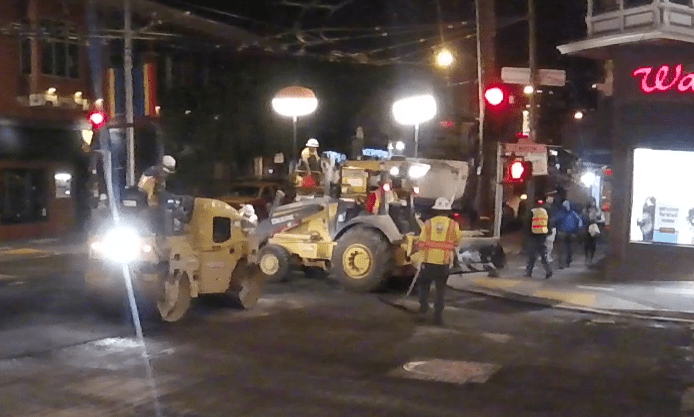

That’s a crowded corner. Four giant machines converging, all in motion.
vlcsnap-2016-09-23-15h54m29s010

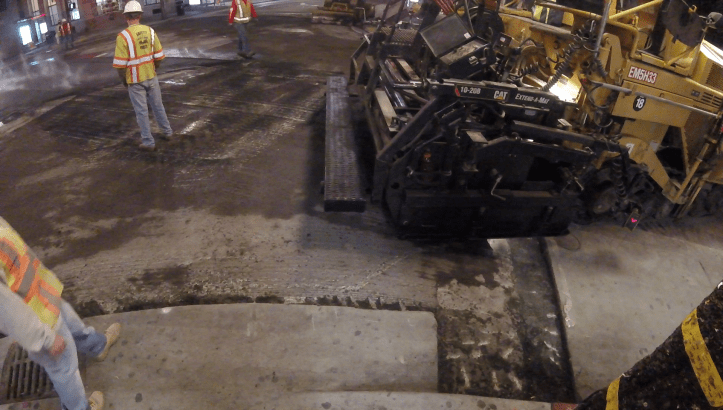

Asphalt is fairly inexpensive but the machine you use to spread it is very costly!

vlcsnap-2016-09-23-15h54m59s978vlcsnap-2016-09-23-15h56m58s752



vlcsnap-2016-09-23-16h01m47s100

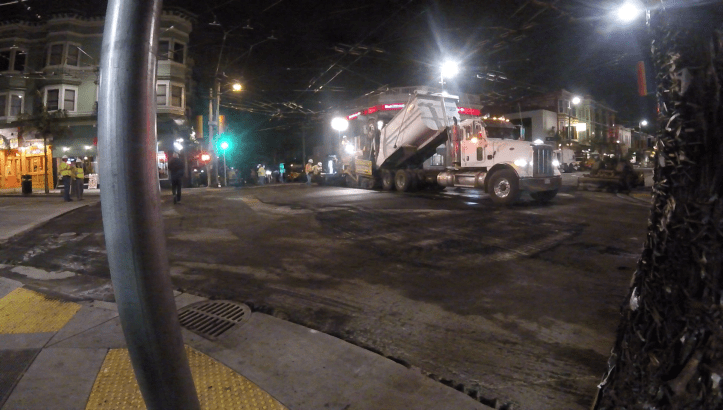

Another truckload of hot asphalt pullin’ in…



vlcsnap-2016-09-23-16h03m51s744vlcsnap-2016-09-23-16h04m19s346

vlcsnap-2016-09-23-16h05m24s155

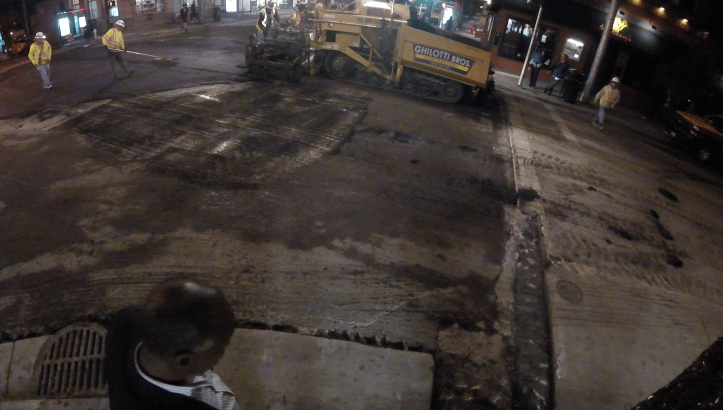

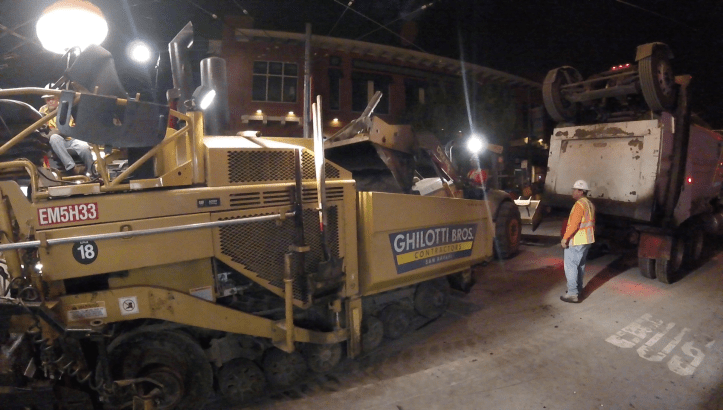

They literally attach the dump truck to the spreader machine and roll as they fill.

vlcsnap-2016-09-23-16h06m08s382vlcsnap-2016-09-23-16h08m27s935vlcsnap-2016-09-23-16h12m04s038vlcsnap-2016-09-23-16h19m19s726

vlcsnap-2016-09-23-16h24m19s636
Pipes and fixtures have to be individually packed and each one prepped and finished by hand. This is a critical detail that has be done just right.
vlcsnap-2016-09-23-16h25m27s188

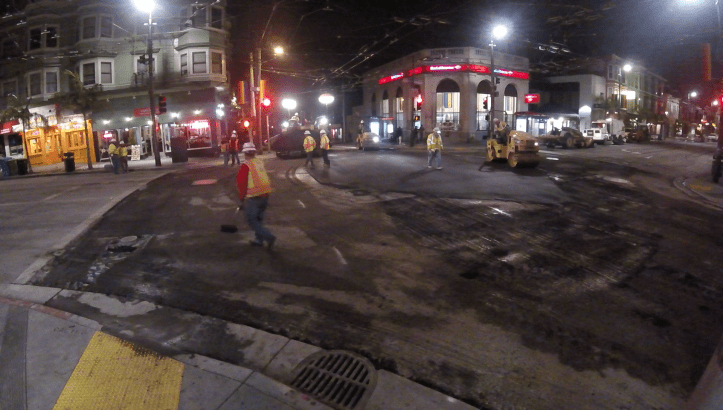

That’s the boss out there marking the center with spray paint.

vlcsnap-2016-09-23-16h26m20s495

At this point it’s getting late and we are way past my bedtime. Obviously these guys aren’t hitting the sack any time soon so this is where we left them with the maestro standing center stage and the job ongoing. These guys work all night long on their feet on full alert status at every moment. They had no break truck or catering that I could see. The toilet facilities were minimal. They work in a loud dusty environment and perform massively skilled labor. They make the rest of us look like a bunch of overprotected sheltered wimps. But I digress…

vlcsnap-2016-09-23-21h36m57s732

vlcsnap-2016-09-23-21h37m53s762

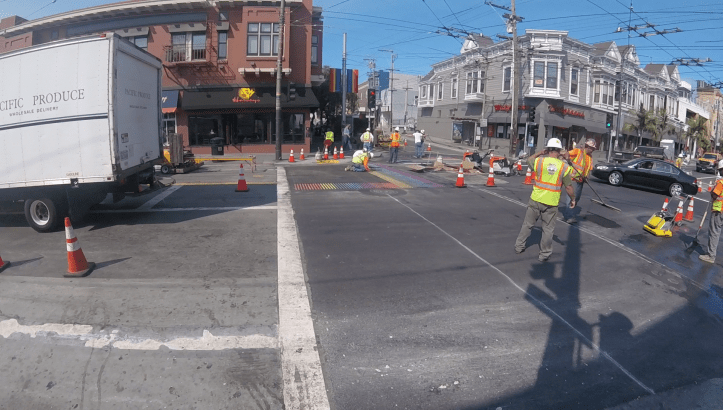

All night they toiled and by morning all the heavy equipment was gone and you’d never even know anything had happened. The intersection was perfect and ready for new crosswalks.

vlcsnap-2016-09-23-21h39m23s368

vlcsnap-2016-09-23-21h42m40s557

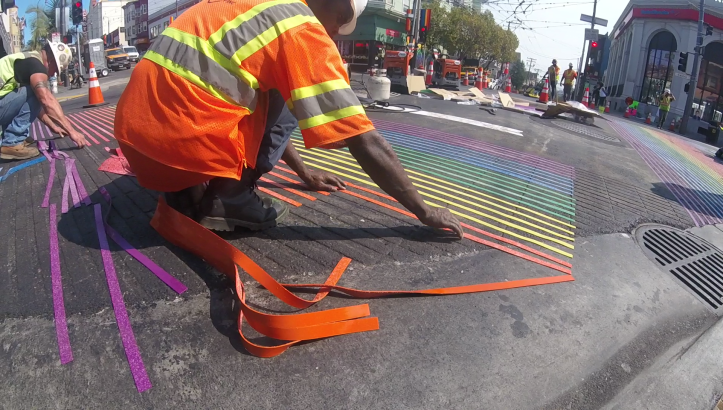

Installing the rainbow flag striping is a very labor intensive endeavor.
vlcsnap-2016-09-23-21h46m24s731
And that’s the boss standing right there watching every detail. This is his baby.

vlcsnap-2016-09-23-21h47m17s280

vlcsnap-2016-09-23-21h48m49s713
Have you ever had to perform with three city overseers standing behind you and your boss standing on the other side with everyone watching for any mistake?

vlcsnap-2016-09-23-21h49m27s746vlcsnap-2016-09-23-21h49m51s228vlcsnap-2016-09-23-21h50m14s810vlcsnap-2016-09-23-21h50m58s910.png

Now lets step back and see what goes into making those grooves in the pavement. Basically they heat the pavement until its soft and then they take a big plastic mat and pound the pattern right into the surface. Then they remove the plastic mat and spray the area down with water on the top to cool it and harden the asphalt again.

This is all involves a different set of dangerous equipment and skills than the previous work which is where some versatility comes into play. They are also working with daytime traffic conditions which are a bit heavier and not limited to Muni buses.vlcsnap-2016-09-23-21h54m19s023

vlcsnap-2016-09-23-21h57m41s761

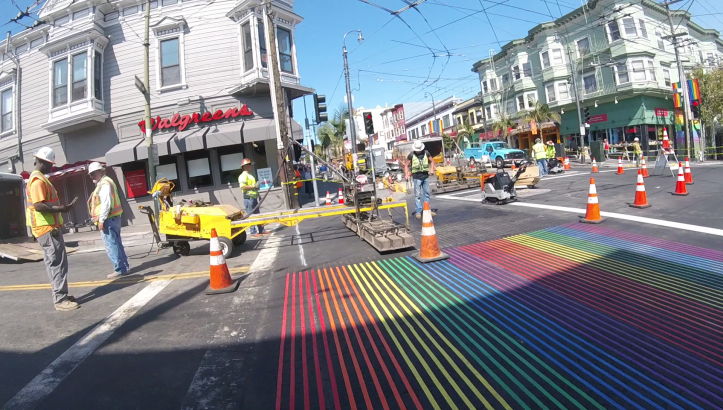

So new they hesitate to walk on it. First corner goes into use.

vlcsnap-2016-09-23-21h58m24s765vlcsnap-2016-09-23-21h58m42s211



vlcsnap-2016-09-23-21h59m44s012vlcsnap-2016-09-23-22h00m40s853



vlcsnap-2016-09-23-22h01m50s078

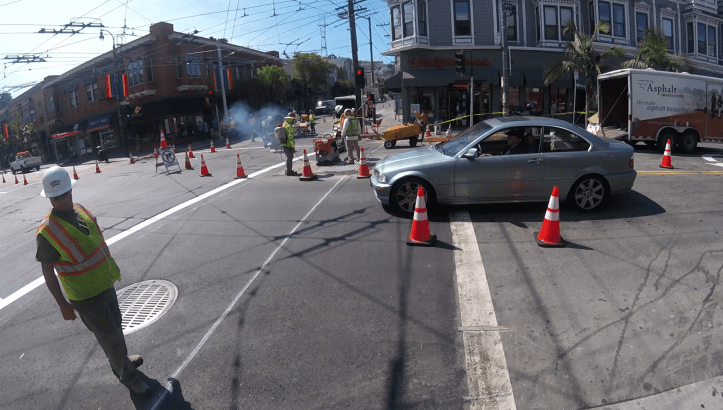

He’s looking back to make sure I’m not some nut fiddling with the equipment. Like I said before, these workers are in a hyper aware state out there. They have to be.
vlcsnap-2016-09-23-22h07m36s393

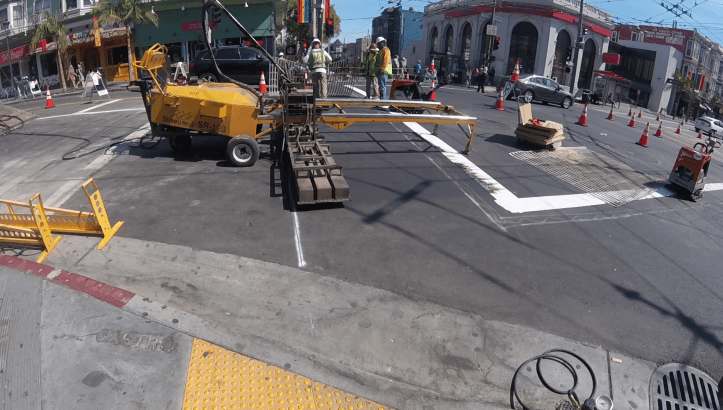

Note the pounding device and the plastic form ready to go staged to the right. And the pavement cooker is scorching the old white crosswalk.
vlcsnap-2016-09-23-22h10m47s928

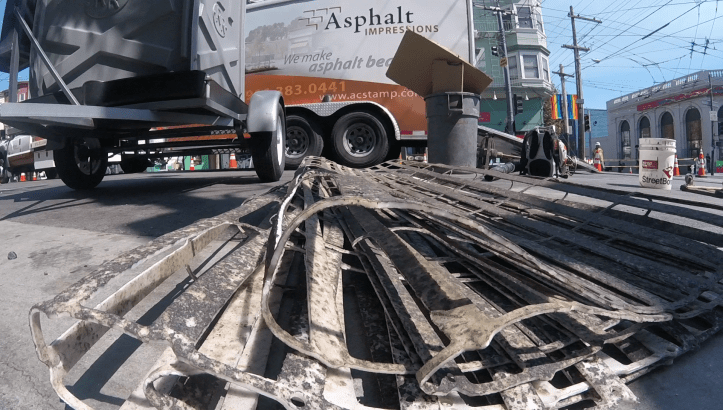

Close up of the plastic mold they use to imprint the asphalt pavement surface.
vlcsnap-2016-09-23-22h11m18s403

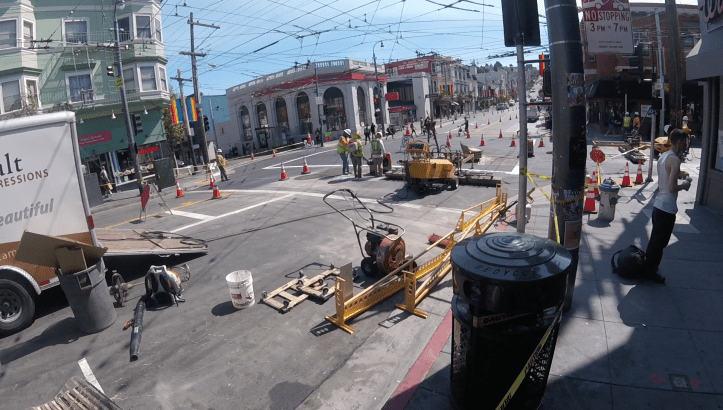

The pull back shot. Much yet to be done. This work will be done one corner at a time.
vlcsnap-2016-09-23-22h12m27s949

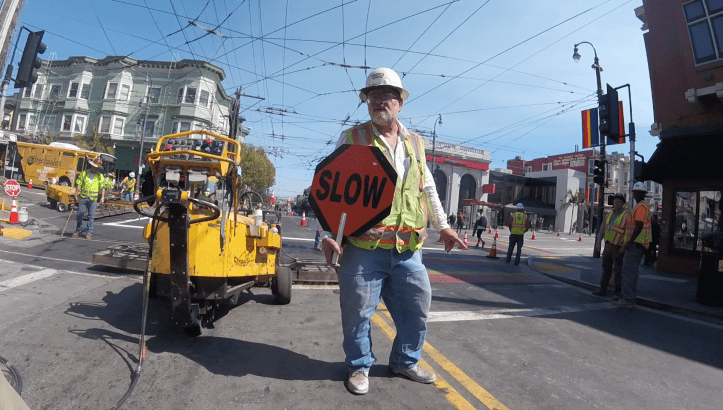

This is what the best bosses do: They keep their team safe!
vlcsnap-2016-09-23-22h15m29s931

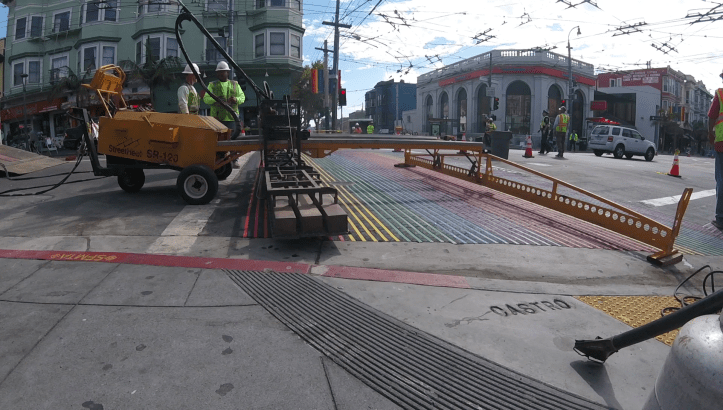

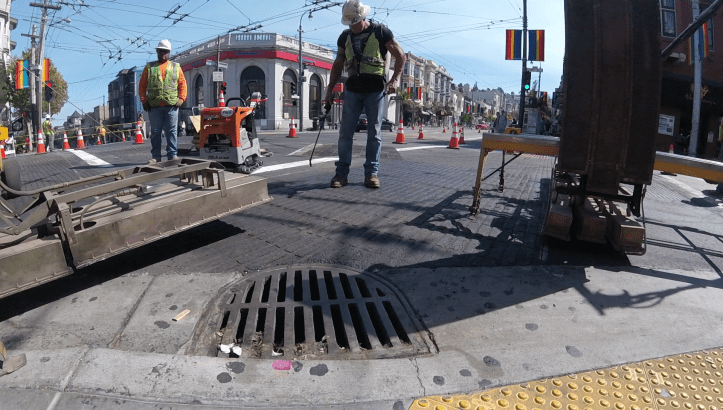

While two street heaters work in tandem this gentleman is operating a hand pumped water spraying system to rapidly cool the surface they just impressed.
vlcsnap-2016-09-23-22h19m25s929
These heat pads move back and forth on tracks.
vlcsnap-2016-09-23-22h20m22s071
The grooves are resilient. They took the evening traffic just fine.

vlcsnap-2016-09-23-22h20m45s810

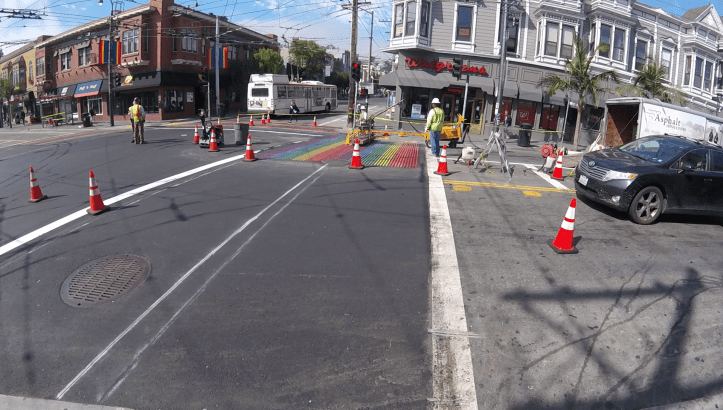

And then the next morning rolls around and look who’s out there all bright eyed and bushy tailed!!vlcsnap-2016-09-23-22h23m38s963vlcsnap-2016-09-23-22h25m46s508vlcsnap-2016-09-23-22h27m41s251vlcsnap-2016-09-23-22h32m05s710vlcsnap-2016-09-23-22h35m28s708vlcsnap-2016-09-23-22h39m00s347vlcsnap-2016-09-23-22h43m17s916

vlcsnap-2016-09-23-22h59m17s557

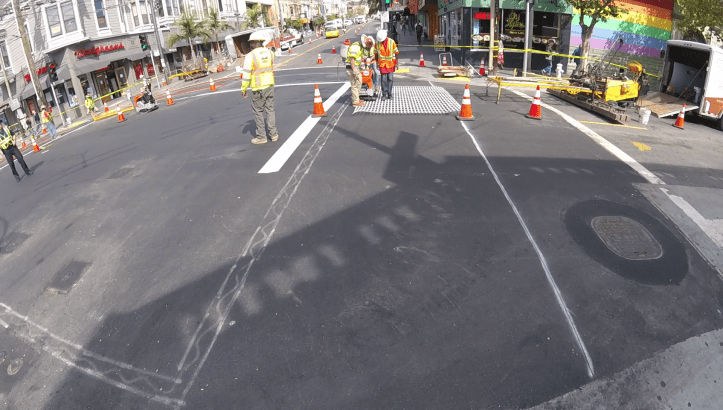

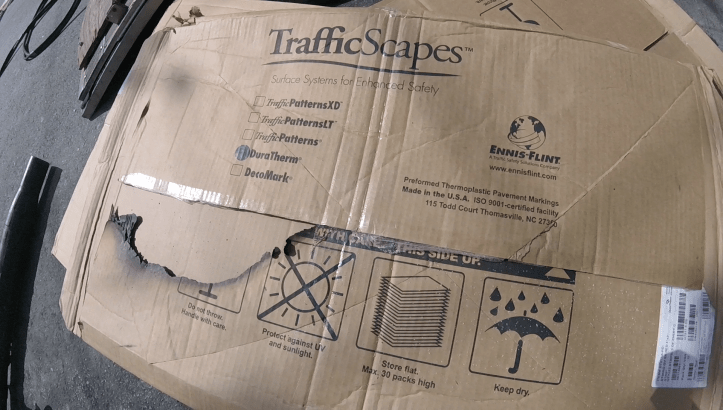

Those guys in the center with the boxes. That’s the colored plastic strips.

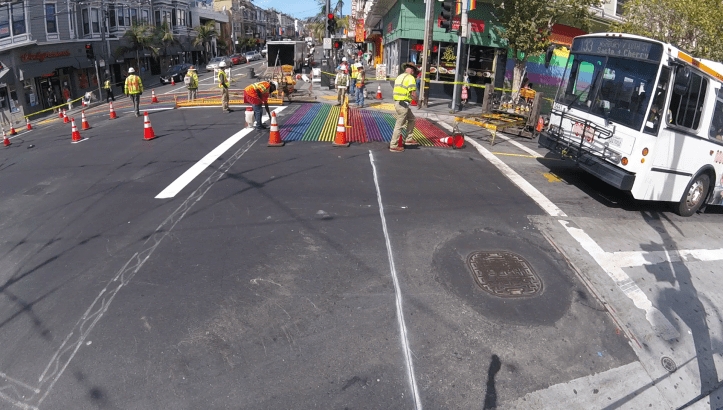

vlcsnap-2016-09-23-22h45m01s611vlcsnap-2016-09-23-22h47m21s382vlcsnap-2016-09-23-22h50m43s835vlcsnap-2016-09-23-22h51m37s133

vlcsnap-2016-09-23-22h53m31s834

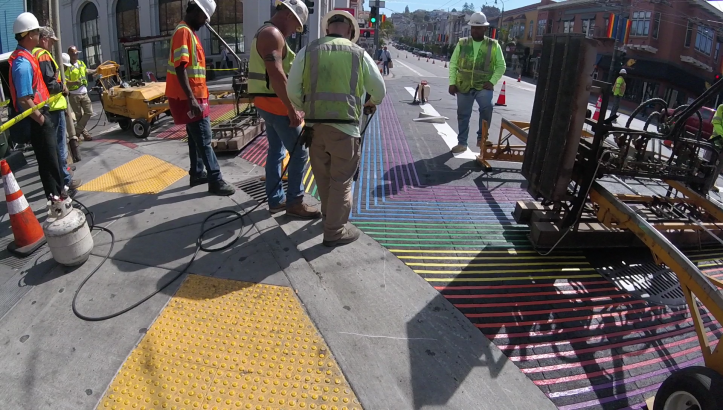

As we complete the third corner a sense of excitement creeps in. Art has it’s own way!
vlcsnap-2016-09-23-22h59m02s722
Final touches and the third corner is complete.



These folks decamped and took a day or two off. Then on Friday morning they popped up again and knocked out that last corner by lunchtime. A well done job, accident free!

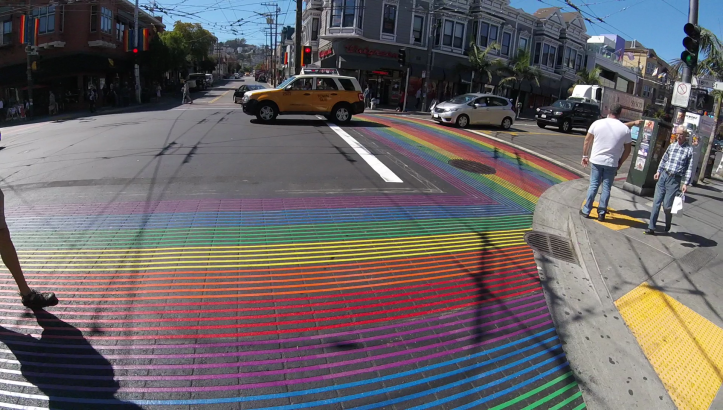

I caught the first few pedestrians using it as the liquid ran off the surface from the unicorn tears the workers spray on the hot rainbows. They were pulling the cones as I filmed. Everything went back into the trucks and rolled off like they had never even been there.

But the intersection is perfect. A Pavement Condition Index of 100. Depending on the weight of the vehicles and the frequency of use this should hold up for more than five years perhaps ten if we are lucky. But that is a question for the experts, certainly not awestruck little old me.

vlcsnap-2016-09-23-23h01m03s012

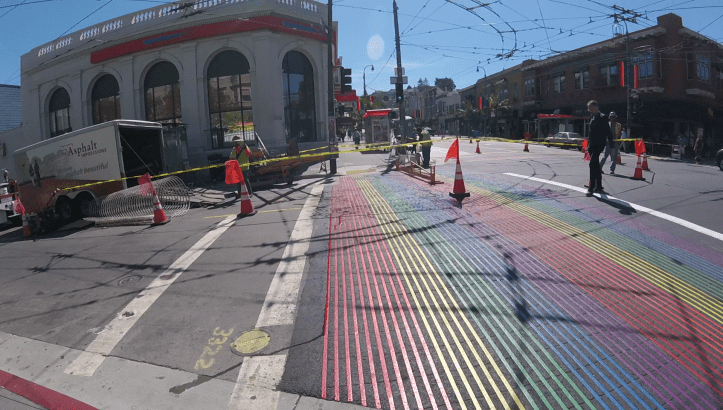

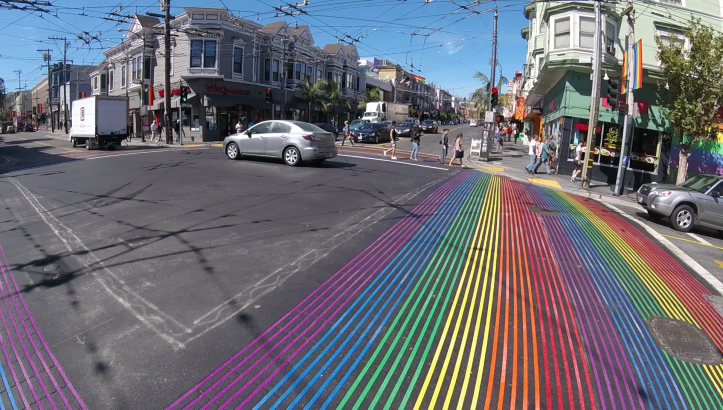

Note the rainbow flag on the wall of the building. Good food on that corner!!

vlcsnap-2016-09-23-23h08m42s435vlcsnap-2016-09-23-23h02m52s022vlcsnap-2016-09-23-23h03m27s838vlcsnap-2016-09-23-23h03m41s368vlcsnap-2016-09-23-23h04m41s049vlcsnap-2016-09-23-23h06m25s992vlcsnap-2016-09-23-23h07m22s673vlcsnap-2016-09-23-23h07m58s568

Now everyone is gonna want this. Is there such a thing as crosswalk envy?

Last thing before I sign off. I think it is fair to say that we that this is a good thing for our neighborhood. And we appreciate it. So perhaps in addition to a tip of the hat to the contractors mentioned above we should also extend our appreciation to the folks at City Hall who made this possible. So Thank You Mayor Ed Lee, District 8 Supervisor Scott Wiener, and the folks at SF Department of Public Works & SFMTA. And our friends at the Castro/Upper Market Community Benefit District.

‘Nuff said.

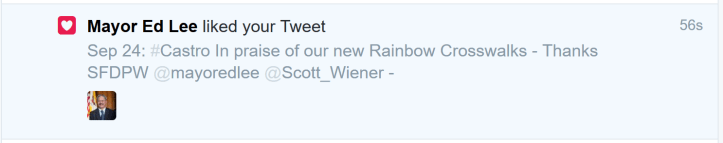

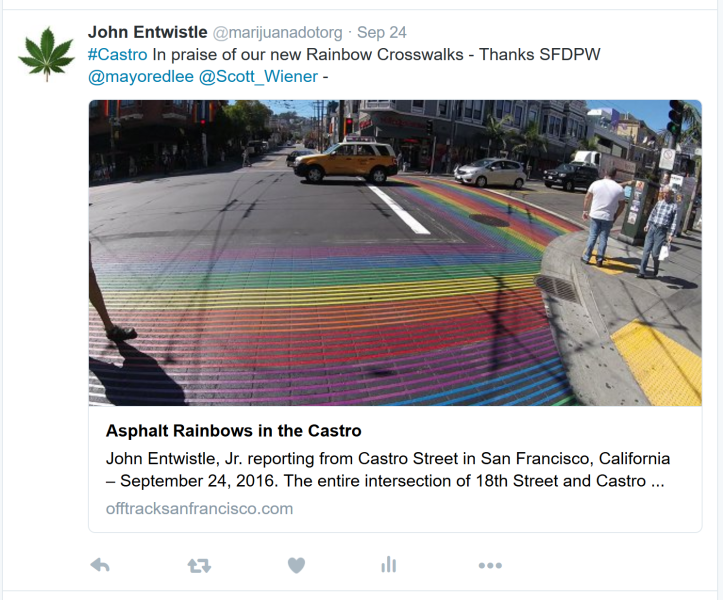

Update (9-25-2016):  I sent out the following tweet to announce the article and thank the folks behind the curtain over at City Hall for their role in all this, and lo and behold, Mayor Ed Lee liked my tweet!! — Additionally Andrea Aiello, the Executive Director for the Castro/Upper Market Community Benefit District (Castro CBD) wrote a really nice comment. — Thanks folks! untitledmayoredleelikedthistweetmayoredleelikedyourtweet

[All photographs are by John Entwistle, Jr. and are copy written under creative commons attribution non-derivative, non-commercial.]
